500KG Capacity Forklift Type Aluminum Pouring Ladles For Molten Aluminum
Aluminum Recyclling Transfer Ladles for Long Distance Transfer
1. Transfer Ladle Application
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean. Our
transfer ladle having gear box for smooth tilting & ladle having refractory lining of non wetting castable,
Available capacity 100 to 3000 Kgs
2. Transfer Ladle Advantages
-- Lower Temperature reduce <15 degree
-- Long Service Life
-- Easy Handling
-- Light Weight
3. Transfer Ladle Characteristic
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |
4. Company Introduce
Jinan Hydeb Thermal Tech Co., Ltd, was established in January 2003, and now has 56 employees. Our
sales of 50 million RMB in 2021.
Hydeb is focus on one industry -- "Aluminum Casting"
Hydebe has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
5. Technical Parameters
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 500 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1100KG |
6. Ladle Modles
| Type | CLB-15 | CLB-20 | CLB-30 | CLB-50 | CLB-80 | CLB-100 | CLB-120 | CLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |

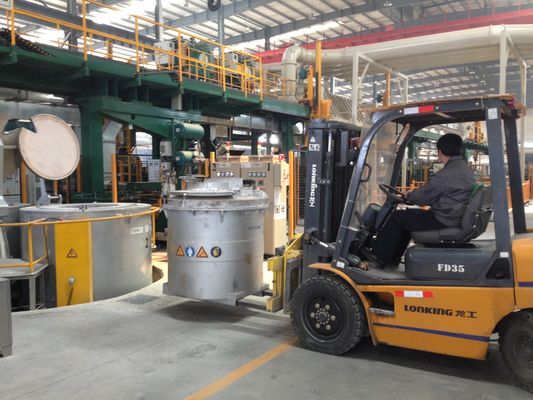

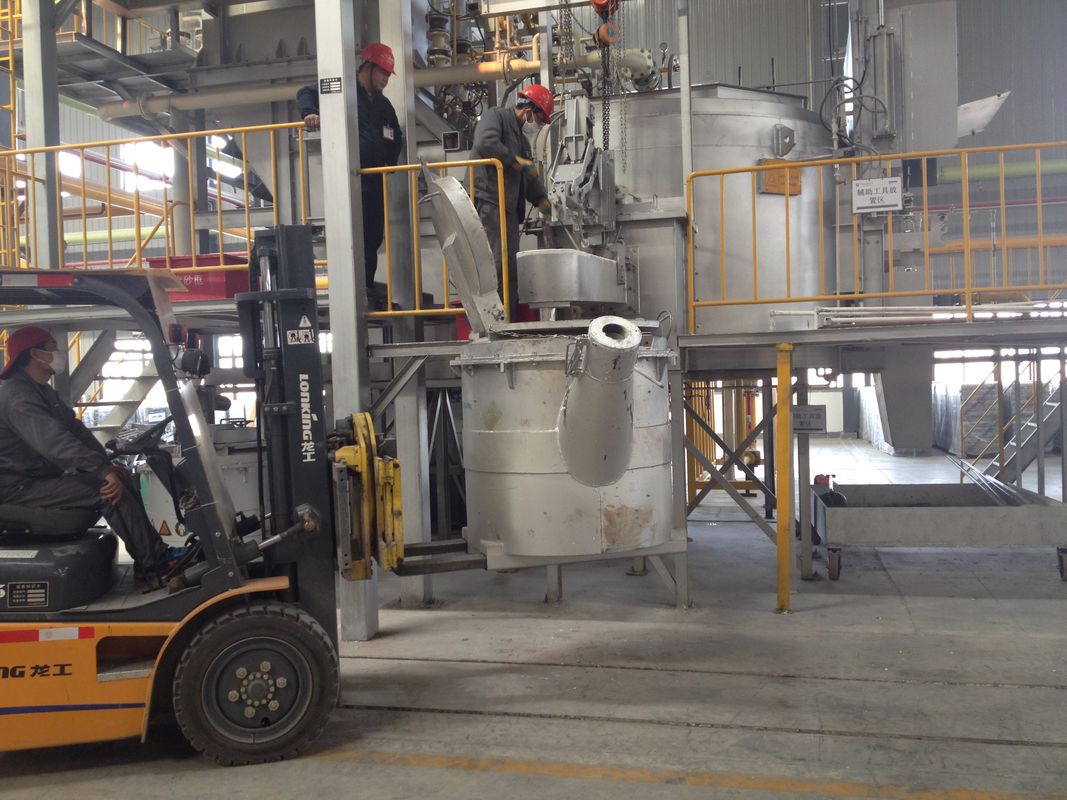

7. Ladle Reference Pictures
8. Our Strengths
9. FRQ
Q1: I know nothing about this pouring ladle, what kind of pouring ladle I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this pouring ladle, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this pouring ladle during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
